GitLab Action
The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.
Integration Details
ThreatQuotient provides the following details for this integration:
| Current Integration Version | 1.0.0 |
| Compatible with ThreatQ Versions | >= 5.12.1 |
| ThreatQ TQO License Required | Yes |
| Support Tier | ThreatQ Supported |
Introduction
The GitLab Action for ThreatQ allows users to automatically create Issues in a GitLab Repository based on incidents in ThreatQ. Context, such as tags and the full HTML description, will be included in the GitLab Issue.
The integration provides the following action:
- GitLab - Create Issues - Creates GitLab Issues based on ThreatQ Incidents
The action is compatible with the Incident object type.
This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.
Prerequisites
- An active ThreatQ TDR Orchestrator (TQO) license.
- A data collection containing Incident objects.
- A GitLab Personal Access Token with the following permissions:
- api
- read_api
- read_repository
- write_repository
Installation
Perform the following steps to install the integration:
The same steps can be used to upgrade the integration to a new version.
- Log into https://marketplace.threatq.com/.
- Locate and download the action zip file.
- Navigate to the integrations management page on your ThreatQ instance.
- Click on the Add New Integration button.
- Upload the action zip file using one of the following methods:
- Drag and drop the zip file into the dialog box
- Select Click to Browse to locate the zip file on your local machine
ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.
You will still need to configure the action.
Configuration
ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.
To configure the integration:
- Navigate to your integrations management page in ThreatQ.
- Select the Actions option from the Category dropdown (optional).
- Click on the action entry to open its details page.

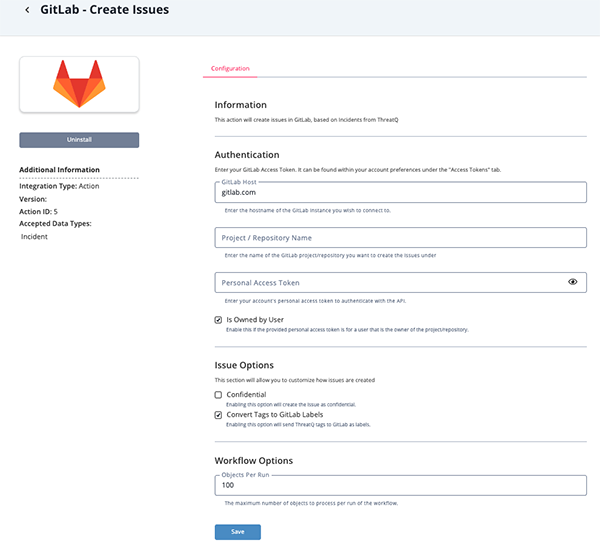

- Enter the following parameters under the Configuration tab:
The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.
Parameter Description GitLab Host Enter the hostname of the GitLab instance you wish to connect to. The default value is gitlab.com. Project / Repository Name Enter the name of the GitLab project/repository to create the issues. Issues created with this action will appear under this account. Personal Access Token Enter your account's personal access token to authenticate with the API. Is Owned by User Enable this if the provided personal access token is for a user that is the owner of the project/repository. Confidential Enabling this option will create the issue as confidential. This option is disabled by default. Convert Tags to GitLab Labels Enabling this option will send ThreatQ tags to GitLab as labels. This option is enabled by default. Objects Per Run The maximum number of objects to process per run of the workflow. The default value for this is 100.
- Review any additional settings, make any changes if needed, and click on Save.
Actions
The integration provides the following action:
| Function | Description | Object Type | Object Subtype |
|---|---|---|---|
| GitLab - Create Issues | Creates GitLab Issues based on ThreatQ Incidents | Incident | N/A |
GitLab - Create Issues
The Get Issues action will automatically send Incidents from ThreatQ to a Gitlab project's Issues. The action will create a new Issue for each Incident that is sent to it. The action will also include the Incident's tags as labels on the Issue (if enabled). The full HTML description for each Incident (up to 1 MB) will be included in the Issue.
Fetch/Validate ID
The first request that is made is to fetch the ID for the project, validating that it exists.
GET https://{{ host }}/api/v4/projects?search={{ project_name }}
Sample Response:
[
{
"id": 49138255,
"description": null,
"name": "Sample Repository",
"name_with_namespace": "John Doe / Sample Repository",
"path": "sample-repository",
"path_with_namespace": "john.doe/sample-repository",
"created_at": "2023-09-06T20:38:34.100Z",
"default_branch": "main",
"tag_list": [],
"topics": [],
"ssh_url_to_repo": "git@gitlab.com:john.doe/sample-repository.git",
"http_url_to_repo": "https://gitlab.com/john.doe/sample-repository.git",
"web_url": "https://gitlab.com/john.doe/sample-repository",
"readme_url": "https://gitlab.com/john.doe/sample-repository/-/blob/main/README.md",
"forks_count": 0,
"avatar_url": null,
"star_count": 0,
"last_activity_at": "2023-09-07T14:44:56.575Z",
"namespace": {
"id": 58452882,
"name": "John Doe",
"path": "john.doe",
"kind": "user",
"full_path": "john.doe",
"parent_id": null,
"avatar_url": "https://secure.gravatar.com/avatar/eed9dc8b344dc6ad47f400d81885cbb9?s=80&d=identicon",
"web_url": "https://gitlab.com/john.doe"
},
"container_registry_image_prefix": "registry.gitlab.com/john.doe/sample-repository",
"_links": {
"self": "https://gitlab.com/api/v4/projects/49138255",
"issues": "https://gitlab.com/api/v4/projects/49138255/issues",
"merge_requests": "https://gitlab.com/api/v4/projects/49138255/merge_requests",
"repo_branches": "https://gitlab.com/api/v4/projects/49138255/repository/branches",
"labels": "https://gitlab.com/api/v4/projects/49138255/labels",
"events": "https://gitlab.com/api/v4/projects/49138255/events",
"members": "https://gitlab.com/api/v4/projects/49138255/members",
"cluster_agents": "https://gitlab.com/api/v4/projects/49138255/cluster_agents"
},
"packages_enabled": true,
"empty_repo": false,
"archived": false,
"visibility": "private",
"owner": {
"id": 12657250,
"username": "john.doe",
"name": "John Doe",
"state": "active",
"avatar_url": "https://secure.gravatar.com/avatar/eed9dc8b344dc6ad47f400d81885cbb9?s=80&d=identicon",
"web_url": "https://gitlab.com/john.doe"
},
"resolve_outdated_diff_discussions": false,
"container_expiration_policy": {
"cadence": "1d",
"enabled": false,
"keep_n": 10,
"older_than": "90d",
"name_regex": ".*",
"name_regex_keep": null,
"next_run_at": "2023-09-07T20:38:34.152Z"
},
"issues_enabled": true,
"merge_requests_enabled": true,
"wiki_enabled": true,
"jobs_enabled": true,
"snippets_enabled": true,
"container_registry_enabled": true,
"service_desk_enabled": true,
"service_desk_address": "contact-project+john-doe-sample-repository-49138255-issue-@incoming.gitlab.com",
"can_create_merge_request_in": true,
"issues_access_level": "enabled",
"repository_access_level": "enabled",
"merge_requests_access_level": "enabled",
"forking_access_level": "enabled",
"wiki_access_level": "enabled",
"builds_access_level": "enabled",
"snippets_access_level": "enabled",
"pages_access_level": "private",
"analytics_access_level": "enabled",
"container_registry_access_level": "enabled",
"security_and_compliance_access_level": "private",
"releases_access_level": "enabled",
"environments_access_level": "enabled",
"feature_flags_access_level": "enabled",
"infrastructure_access_level": "enabled",
"monitor_access_level": "enabled",
"emails_disabled": false,
"emails_enabled": true,
"shared_runners_enabled": true,
"lfs_enabled": true,
"creator_id": 12657250,
"import_url": null,
"import_type": null,
"import_status": "none",
"open_issues_count": 2,
"description_html": "",
"updated_at": "2023-09-07T14:44:56.575Z",
"ci_default_git_depth": 20,
"ci_forward_deployment_enabled": true,
"ci_forward_deployment_rollback_allowed": true,
"ci_job_token_scope_enabled": false,
"ci_separated_caches": true,
"ci_allow_fork_pipelines_to_run_in_parent_project": true,
"build_git_strategy": "fetch",
"keep_latest_artifact": true,
"restrict_user_defined_variables": false,
"runners_token": "GR13489411NBhYYYs41RXAAKCVE_z",
"runner_token_expiration_interval": null,
"group_runners_enabled": true,
"auto_cancel_pending_pipelines": "enabled",
"build_timeout": 3600,
"auto_devops_enabled": false,
"auto_devops_deploy_strategy": "continuous",
"ci_config_path": "",
"public_jobs": true,
"shared_with_groups": [],
"only_allow_merge_if_pipeline_succeeds": false,
"allow_merge_on_skipped_pipeline": null,
"request_access_enabled": true,
"only_allow_merge_if_all_discussions_are_resolved": false,
"remove_source_branch_after_merge": true,
"printing_merge_request_link_enabled": true,
"merge_method": "merge",
"squash_option": "default_off",
"enforce_auth_checks_on_uploads": true,
"suggestion_commit_message": null,
"merge_commit_template": null,
"squash_commit_template": null,
"issue_branch_template": null,
"autoclose_referenced_issues": true,
"external_authorization_classification_label": "",
"requirements_enabled": false,
"requirements_access_level": "enabled",
"security_and_compliance_enabled": true,
"compliance_frameworks": [],
"permissions": {
"project_access": {
"access_level": 50,
"notification_level": 3
},
"group_access": null
}
},
{
"id": 39792303,
"description": null,
"name": "YARA Rules",
"name_with_namespace": "John Doe / YARA Rules",
"path": "yara-rules",
"path_with_namespace": "john.doe/yara-rules",
"created_at": "2022-09-28T14:16:08.174Z",
"default_branch": "main",
"tag_list": [],
"topics": [],
"ssh_url_to_repo": "git@gitlab.com:john.doe/yara-rules.git",
"http_url_to_repo": "https://gitlab.com/john.doe/yara-rules.git",
"web_url": "https://gitlab.com/john.doe/yara-rules",
"readme_url": "https://gitlab.com/john.doe/yara-rules/-/blob/main/README.md",
"forks_count": 0,
"avatar_url": null,
"star_count": 0,
"last_activity_at": "2022-10-06T15:01:37.200Z",
"namespace": {
"id": 58452882,
"name": "John Doe",
"path": "john.doe",
"kind": "user",
"full_path": "john.doe",
"parent_id": null,
"avatar_url": "https://secure.gravatar.com/avatar/eed9dc8b344dc6ad47f400d81885cbb9?s=80&d=identicon",
"web_url": "https://gitlab.com/john.doe"
},
"container_registry_image_prefix": "registry.gitlab.com/john.doe/yara-rules",
"_links": {
"self": "https://gitlab.com/api/v4/projects/39792303",
"issues": "https://gitlab.com/api/v4/projects/39792303/issues",
"merge_requests": "https://gitlab.com/api/v4/projects/39792303/merge_requests",
"repo_branches": "https://gitlab.com/api/v4/projects/39792303/repository/branches",
"labels": "https://gitlab.com/api/v4/projects/39792303/labels",
"events": "https://gitlab.com/api/v4/projects/39792303/events",
"members": "https://gitlab.com/api/v4/projects/39792303/members",
"cluster_agents": "https://gitlab.com/api/v4/projects/39792303/cluster_agents"
},
"packages_enabled": true,
"empty_repo": false,
"archived": false,
"visibility": "private",
"owner": {
"id": 12657250,
"username": "john.doe",
"name": "John Doe",
"state": "active",
"avatar_url": "https://secure.gravatar.com/avatar/eed9dc8b344dc6ad47f400d81885cbb9?s=80&d=identicon",
"web_url": "https://gitlab.com/john.doe"
},
"resolve_outdated_diff_discussions": false,
"container_expiration_policy": {
"cadence": "1d",
"enabled": false,
"keep_n": 10,
"older_than": "90d",
"name_regex": ".*",
"name_regex_keep": null,
"next_run_at": "2022-09-29T14:16:08.193Z"
},
"issues_enabled": true,
"merge_requests_enabled": true,
"wiki_enabled": true,
"jobs_enabled": true,
"snippets_enabled": true,
"container_registry_enabled": true,
"service_desk_enabled": true,
"service_desk_address": "contact-project+john-doe-yara-rules-39792303-issue-@incoming.gitlab.com",
"can_create_merge_request_in": true,
"issues_access_level": "enabled",
"repository_access_level": "enabled",
"merge_requests_access_level": "enabled",
"forking_access_level": "enabled",
"wiki_access_level": "enabled",
"builds_access_level": "enabled",
"snippets_access_level": "enabled",
"pages_access_level": "private",
"analytics_access_level": "enabled",
"container_registry_access_level": "enabled",
"security_and_compliance_access_level": "private",
"releases_access_level": "enabled",
"environments_access_level": "enabled",
"feature_flags_access_level": "enabled",
"infrastructure_access_level": "enabled",
"monitor_access_level": "enabled",
"emails_disabled": false,
"emails_enabled": true,
"shared_runners_enabled": true,
"lfs_enabled": true,
"creator_id": 12657250,
"import_url": null,
"import_type": null,
"import_status": "none",
"open_issues_count": 0,
"description_html": "",
"updated_at": "2022-10-06T15:01:37.200Z",
"ci_default_git_depth": 20,
"ci_forward_deployment_enabled": true,
"ci_forward_deployment_rollback_allowed": true,
"ci_job_token_scope_enabled": false,
"ci_separated_caches": true,
"ci_allow_fork_pipelines_to_run_in_parent_project": true,
"build_git_strategy": "fetch",
"keep_latest_artifact": true,
"restrict_user_defined_variables": false,
"runners_token": "GR1348941jHJWuJ-eZ6CWC241MZD7",
"runner_token_expiration_interval": null,
"group_runners_enabled": true,
"auto_cancel_pending_pipelines": "enabled",
"build_timeout": 3600,
"auto_devops_enabled": false,
"auto_devops_deploy_strategy": "continuous",
"ci_config_path": "",
"public_jobs": true,
"shared_with_groups": [],
"only_allow_merge_if_pipeline_succeeds": false,
"allow_merge_on_skipped_pipeline": null,
"request_access_enabled": true,
"only_allow_merge_if_all_discussions_are_resolved": false,
"remove_source_branch_after_merge": true,
"printing_merge_request_link_enabled": true,
"merge_method": "merge",
"squash_option": "default_off",
"enforce_auth_checks_on_uploads": true,
"suggestion_commit_message": null,
"merge_commit_template": null,
"squash_commit_template": null,
"issue_branch_template": null,
"autoclose_referenced_issues": true,
"external_authorization_classification_label": "",
"requirements_enabled": false,
"requirements_access_level": "enabled",
"security_and_compliance_enabled": true,
"compliance_frameworks": [],
"permissions": {
"project_access": {
"access_level": 50,
"notification_level": 3
},
"group_access": null
}
}
]Create Incident
The following request is made to create each Incident as an Issue:
POST https://{{ host }}/api/v4/projects/{{ project_id }}/issues
Sample Response:
{
"id": 134850195,
"iid": 3,
"project_id": 49138255,
"title": "Test Issue",
"description": "<p>Test Description</p>",
"state": "opened",
"created_at": "2023-09-19T14:19:56.338Z",
"updated_at": "2023-09-19T14:19:56.338Z",
"closed_at": null,
"closed_by": null,
"labels": ["demo", "test"],
"milestone": null,
"assignees": [],
"author": {
"id": 12657250,
"username": "john.doe",
"name": "John Doe",
"state": "active",
"avatar_url": "https://secure.gravatar.com/avatar/eed9dc8b344dc6ad47f400d81885cbb9?s=80&d=identicon",
"web_url": "https://gitlab.com/john.doe"
},
"type": "ISSUE",
"assignee": null,
"user_notes_count": 0,
"merge_requests_count": 0,
"upvotes": 0,
"downvotes": 0,
"due_date": null,
"confidential": false,
"discussion_locked": null,
"issue_type": "issue",
"web_url": "https://gitlab.com/john.doe/sample-repository/-/issues/3",
"time_stats": {
"time_estimate": 0,
"total_time_spent": 0,
"human_time_estimate": null,
"human_total_time_spent": null
},
"task_completion_status": {
"count": 0,
"completed_count": 0
},
"blocking_issues_count": 0,
"has_tasks": true,
"task_status": "0 of 0 checklist items completed",
"_links": {
"self": "https://gitlab.com/api/v4/projects/49138255/issues/3",
"notes": "https://gitlab.com/api/v4/projects/49138255/issues/3/notes",
"award_emoji": "https://gitlab.com/api/v4/projects/49138255/issues/3/award_emoji",
"project": "https://gitlab.com/api/v4/projects/49138255",
"closed_as_duplicate_of": null
},
"references": {
"short": "#3",
"relative": "#3",
"full": "john.doe/sample-repository#3"
},
"severity": "UNKNOWN",
"subscribed": true,
"moved_to_id": null,
"service_desk_reply_to": null
}Use Case Example
Our organization tracks incidents in GitLab using the Issue Tracker. I want to be able to have Issues created in GitLab based on Incidents that analysts create and curate in ThreatQ regarding possible threats to our organization.
Example:
- Analysts create incidents in ThreatQ with rich context
- The action takes these incidents and creates Issues in GitLab for them
- Incident response team using GitLab can triage and respond to the Issues
Change Log
- Version 1.0.0
- Initial release
PDF Guides
| Document | ThreatQ Version |
|---|---|
| GitLab Action Guide v1.0.0 | 5.12.1 or Greater |
