Current ThreatQ Version Filter

AlienVault OTX Action

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.0.0

Compatible with ThreatQ Versions

>= 5.12.1

ThreatQ TQO License Required

Yes

Support Tier

ThreatQ Supported

Introduction

The AlienVault OTX action enables the automatic enrichment of IOCs using AlienVault OTX.

The action can perform the following function:

AlienVault OTX - Performs IOC lookups in AlienVault for enrichment and fetches file analysis context.

The action is compatible with the following indicator types:

IP Address
IPv6 Address
FQDN
MD5
SHA-1
SHA-256
SHA-384
SHA-512
URL
CVE

The action returns the following enriched system objects:

Indicators
- Indicator Attributes
Adversaries
Tags

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

An active ThreatQ TDR Orchestrator (TQO) license.
A data collection containing the following indicator objects:
- IP Address
- IPv6 Address
- FQDN
- MD5
- SHA-1
- SHA-256
- SHA-384
- SHA-512
- URL
- CVE

Installation

This action can be installed in the My Integration section of your ThreatQ instance. See the Installing an Action topic for more details.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the Actions option from the Category dropdown (optional).
Click on the action entry to open its details page.

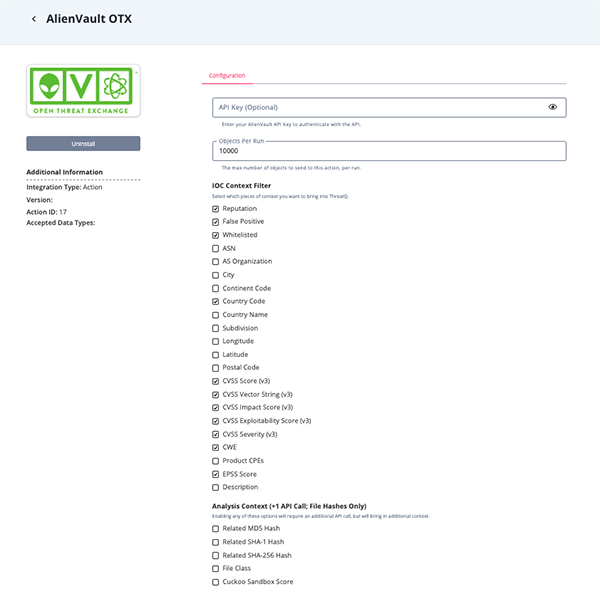

Enter the following parameters under the Configuration tab:

The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

Parameter	Description
API Key	Enter your AlienVault API Key to authenticate with the API.
Objects Per Run	The max number of objects to send to this action, per run. (default: 10,000)
IOC Context Filter	Select which pieces of context you want to bring into ThreatQ.
Analysis Context (+1 API Call; File Hashes Only)	Enabling any of these options will require an additional API call, but will bring in additional context.
Related OTX Pulse Context Filter	Select which pieces of context you want to inherit from the related OTX Pulses.
Ingest Tags As	Select which entity type you'd like tags to be ingested as. (default: Tags)

Review any additional settings, make any changes if needed, and click on Save.

Action Functions

The action provides the following function:

Action	Description	Object Type	Object Subtype
AlienVault OTX	Performs IOC lookups in AlienVault for enrichment and fetches file analysis context.	Indicators	IP Address, IPv6 Address, URL, FQDN, MD5, SHA-1, SHA-256, SHA-384, SHA-512, CVE

AlienVault OTX

The AlienVault OTX enriches an IOC using AlienVault OTX's API.

GET https://otx.alienvault.com/api/v1/indicators/{{ type }}/{{ value }}

Sample Response:

{
  "whois": "http://whois.domaintools.com/64.190.63.111",
  "reputation": 0,
  "indicator": "64.190.63.111",
  "type": "IPv4",
  "type_title": "IPv4",
  "base_indicator": {
    "id": 3396107990,
    "indicator": "64.190.63.111",
    "type": "IPv4",
    "title": "",
    "description": "",
    "content": "",
    "access_type": "public",
    "access_reason": ""
  },
  "pulse_info": {
    "count": 19,
    "pulses": [
      {
        "id": "6231ee27e6834a707de700ae",
        "name": "LCIA:HoneyNet:2022",
        "description": "Louisiana Cyber Investigators Alliance (LCIA): HoneyPot Suricata Log: 2022 A unified coordinated group of federal, state, local law enforcement, as well as LA ESF-17 members, focused onsafeguarding Louisiana's networks through collaborative vigilance and thorough investigations http://www.la-safe.org",
        "modified": "2022-10-25T16:02:05.157000",
        "created": "2022-03-16T14:03:19.241000",
        "tags": ["tsec", "tpot19", "honeypot", "la-safe.org"],
        "references": [],
        "public": 1,
        "adversary": "",
        "targeted_countries": [],
        "malware_families": [],
        "attack_ids": [],
        "industries": [],
        "TLP": "green",
        "cloned_from": null,
        "export_count": 24,
        "upvotes_count": 0,
        "downvotes_count": 0,
        "votes_count": 0,
        "locked": false,
        "pulse_source": "api",
        "validator_count": 0,
        "comment_count": 0,
        "follower_count": 0,
        "vote": 0,
        "author": {
          "username": "dm_lacia",
          "id": "132921",
          "avatar_url": "https://otx.alienvault.com/assets/images/default-avatar.png",
          "is_subscribed": false,
          "is_following": false
        },
        "indicator_type_counts": {
          "IPv4": 659879,
          "IPv6": 3
        },
        "indicator_count": 659882,
        "is_author": false,
        "is_subscribing": null,
        "subscriber_count": 202,
        "modified_text": "48 minutes ago ",
        "is_modified": true,
        "groups": [],
        "in_group": false,
        "threat_hunter_scannable": true,
        "threat_hunter_has_agents": 1,
        "related_indicator_type": "IPv4",
        "related_indicator_is_active": 0
      }
    ],
    "references": [
      "http://blog.talosintelligence.com/2022/10/threat-roundup-1007-1014.html"
    ],
    "related": {
      "alienvault": {
        "adversary": [],
        "malware_families": [],
        "industries": []
      },
      "other": {
        "adversary": [],
        "malware_families": ["Darkcomet", "Tofsee"],
        "industries": []
      }
    }
  },
  "false_positive": [],
  "validation": [],
  "asn": "AS47846 sedo",
  "city_data": true,
  "city": null,
  "region": null,
  "continent_code": "EU",
  "country_code3": "DEU",
  "country_code2": "DE",
  "subdivision": null,
  "latitude": 51.2993,
  "postal_code": null,
  "longitude": 9.491,
  "accuracy_radius": 200,
  "country_code": "DE",
  "country_name": "Germany",
  "dma_code": 0,
  "charset": 0,
  "area_code": 0,
  "flag_url": "/assets/images/flags/de.png",
  "flag_title": "Germany",
  "sections": [
    "general",
    "geo"
  ]
}

ThreatQuotient provides the following default mapping for this action:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
`data.reputation`	Indicator Attribute	Reputation	N/A	`0`	N/A
`data.false_positive[]`	Indicator Attribute	False Positive	N/A	`True`	Only `True` when certain assessments are found
`data.whitelisted[]`	Indicator Attribute	Whitelisted	N/A	`True`	Only `True` when certain assessments are found
`data.asn`	Indicator Attribute	ASN	N/A	`AS01923`	Split by a space character to get the value
`data.asn`	Indicator Attribute	AS Organization	N/A	`cloudflare`	Split by a space character to get the value
`data.city`	Indicator Attribute	City	N/A	`Frankfurt`	N/A
`data.continent_code`	Indicator Attribute	Continent Code	N/A	`NA`	N/A
`data.country_code`	Indicator Attribute	Country Code	N/A	`US`	N/A
`data.country_name`	Indicator Attribute	Country	N/A	`Germany`	N/A
`data.subdivision`	Indicator Attribute	Subdivision	N/A	N/A	N/A
`data.latitude`	Indicator Attribute	Latitude	N/A	`0.12313`	N/A
`data.longitude`	Indicator Attribute	Longitude	N/A	`-9.2314`	N/A
`data.postal_code`	Indicator Attribute	Postal Code	N/A	N/A	N/A
`data.pulse_info.pulses[].tags[]`	Indicator Attribute	Tags	N/A	`lokibot`	`Tags` is checked in `Related OTX Pulse Context Filter` and `Ingested Tags As` is set to `Attributes`
`data.pulse_info.pulses[].tags[]`	Tag value	Tags	N/A	`lokibot`	`Tags` is checked in `Related OTX Pulse Context Filter` and `Ingested Tags As` is set to `Tags`
`data.pulse_info.pulses[].targeted_countries[]`	Indicator Attribute	Targeted Country	N/A	`Russia`	N/A
`data.pulse_info.pulses[].malware_families[]`	Indicator Attribute	Malware Family	N/A	`Lokibot`	N/A
`data.pulse_info.pulses[].adversary`	Adversary value	N/A	N/A	`Anonymous`	N/A
`data.pulse_info.pulses[].industries[]`	Indicator Attribute	Affected Industry	N/A	`Energy`	N/A
`data.cvssv3.cvssV3.baseScore`	Indicator Attribute	CVSS Score	N/A	`7.5`	N/A
`data.cvssv3.cvssV3.vectorString`	Indicator Attribute	CVSS Vector String	N/A	N/A	N/A
`data.cvssv3.impactScore`	Indicator Attribute	CVSS Impact Score	N/A	`2.5`	N/A
`data.cvssv3.exploitabilityScore`	Indicator Attribute	CVSS Exploitability Score	N/A	`4.5`	N/A
`data.cvssv3.cvssV3.baseSeverity`	Indicator Attribute	CVSS Severity	N/A	`HIGH`	N/A
`data.cwe`	Indicator Attribute	CWE	N/A	`CWE-123`	N/A
`data.products`	Indicator Attribute	CPE	N/A	N/A	N/A
`data.epss`	Indicator Attribute	EPSS Score	N/A	`0.9327`	N/A
`data.description`	Indicator Attribute	Description	N/A	N/A	N/A
`analysis.info.results.file_class`	Indicator Attribute	File Class	N/A	`PEXE`	N/A
`analysis.plugins.cuckoo.result.info.combined_score`	Indicator Attribute	Cuckoo Sandbox Score	N/A	`3`	N/A
`analysis.info.results.sha1`	Indicator Value	SHA-1	N/A	N/A	N/A
`analysis.info.results.md5`	Indicator Value	MD5	N/A	N/A	N/A
`analysis.info.results.sha256`	Indicator Value	SHA-256	N/A	N/A	N/A

AlienVault OTX - Get Analysis (Supplemental)

The Get Anaylsis endpoint fetches analysis information for file IOCs.

GET https://otx.alienvault.com/api/v1/indicators/{{ type }}/{{ value }}/analysis

Enriched Data

Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.

AlienVault OTX

Metric	Result
Run Time	12 minutes
Indicators	973
Indicator Attributes	4,049
Adversaries	9

Known Issues / Limitations

Not all fields are available for all IOC types. For instance, CVEs will have CVSS scores associated, but IP Address will not. Similarly, files will have analysis results while domains will not.

Change Log

Version 1.0.0
- Initial release

PDF Guides

Document	ThreatQ Version
AlienVault OTX Action Guide v1.0.0	5.12.1 or Greater
